Haltech Elite 1500

  • Sale
  • $1,999




The wait is over! Haltech brings high end functionality to market with their new Elite 1500 ECU.

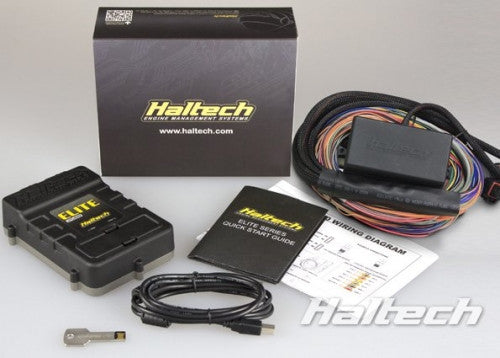

The Kit includes:

Elite 1500 ECU, Premium Universal Wiring Harness Kit, Moulded 6 circuit Haltech Fuse block, 4 Relays, USB Software key, Programming Cable and a custom mounting plate.

Short Harness Option: (+$325.00)
Autospec Flying Lead Kit includes unterminated harness (2.5m/8ft). No Relays, Fuse blocks, or Fuses included.

Long Harness Option: (+$383.00)
Autospec Flying Lead Kit includes unterminated harness (2.5m/8ft). Includes Relays, Fuse blocks and Fuses.

Haltech Elite ECU Features:



• Waterproof Case
• 4 x Fuel Injection Outputs
• 4 x Ignition Outputs
• 28 x Digital Outputs
• 10 x Analogue Voltage Inputs
• 6 x Engine Position Inputs with extensive trigger type support
• Programmable Injector Peak and Hold Currents
• OBDII Capable – set and clear diagnostics trouble codes
• USB laptop communications
• New “ESP” calibration software – More intuitive and easier to use than ever
• Dual CAN Bus communications for OEM and Haltech CAN expansion
• User definable 5D Tuning – Tune by Gear, Cam Angle or any channel for ultimate tuning flexibility
• Drive By Wire (DBW) Throttle Control
• Variable Cam Control – Independently Control up to 4 camshafts
• Dual Channel Knock Control – With FFT analysis for accurate detection
• Auto Tune Capabilities – Short and Long term fuel, ignition & boost learning
• Staged Fuelling – Up to four stages of injectors
• Multi-fuel Support- Support for Petrol (Gasoline), Methanol and Ethanol
• E85 Flex Fuel Ready – With additional boost tables
• Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time
• Closed Loop Idle Control – With learning for consistent idle stability
• Closed Loop 02 Control – Dual bank control for precise tuning
• Anti-Lag and Launch Control – Drag and Rally modes
• Data logging – Internal memory & external laptop logging
• Multi Level Engine Protection – Set limits for sensors and protect your engine
• ECU comes fully enabled, no additional charges for advanced features
• Free firmware upgrades – New features continually being added
