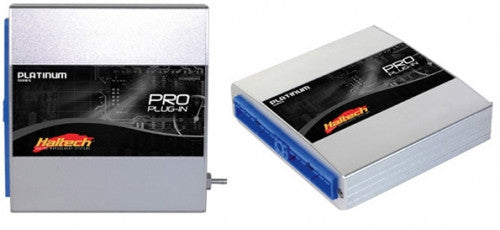

Haltech Pro Mitsubishi EVO 9 Mivec Plug-in ECU

  • Sale
  • $1,519

• Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
• Uses the cars factory sensors
• Supports Sequential Injection (peak and hold) and Direct fire ignition
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping
• Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF
• Diagnostic Trouble Code Storing & Check Engine Light Control
(Access through laptop only )
• Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
• Wideband “auto tuning” using user definable target AFR table
• USB and CAN Communication Port

Factory Outputs:
• 4 x Fuel Injector outputs
• 2 x Ignition outputs
• Tacho , MIVEC Control, Boost Control, Intercooler Sprayer,Idle Control,
• Thermo Fan (variable speed), Fuel Pump (variable speed)
• A/C Clutch Relay, Check Engine Light

Factory Inputs:
• MAF Sensor, Throttle Position Sensor, Knock Detection Sensor
• Oxygen Sensors, Coolant Temperature Sensor, Vehicle Speed Sensor
• Air Temperature Sensor, MAP Sensor (JDM and USA Only),
• Power Steering Switch

Expansion I/O*:
2 x Analogue Voltage inputs
• 2 x Analogue Temperature inputs
• 4 x Digital pulsed outputs
*Optional auxiliary harness required to be purchased Haltech Part # HT040003

• Knock Control
• Long Term Fuel Trim
• ACF On - Base Tables
• Closed Loop O2 Control
• Decel Cut
• Over Boost
• Closed & Open Loop Boost Control
• Gear Setup
• Transient Throttle Enhance

Correction Tables: Fuel Ignition Boost:
• Cranking
• Air Temp Target Correction
• Coolant Temperature Correction
• Map Correction
• Zero Throttle Gear Correction
• Cylinder Trim
• TPS Correction
• Generic Correction 1*
• Generic Correction 2*
• Gear Correction
• Post Start
• Air Temp Duty Correction
• Post Start
* Generic Correction tables have user definable axis

• Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing

Power Requirements:
Source: 8.6 to 16.5 Volts DC
Consumption: 530mA @ 12Volts DC

Physical Dimensions:
ECU Dimensions Length: 154mm (174mm with MAP nipple)
Width: 158mm Height: 42mm Weight: 680g (1.5 lb)

Mitsubishi Evolution 9 (JDM, USA, AUS & RHD Euro models only)
Mitsubishi Evolution 8 MR (JDM, AUS & RHD Euro models only) *
*Not suitable for USA Spec Evolution 8 MR

Engine Codes:

Manual Only (Automatic not supported)

Not Supported Functions: Immobiliser

The Platinum Pro Plug-in Mitsubishi EVO 9 Kit includes:
Pro Plug-in ECU, USB Cable, Programming Software CD, Quick Start Guide, Instruction Manual (on CD)
