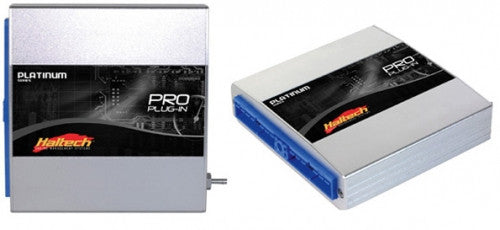

Haltech Pro Nissan R34 GTR Plug-in ECU

  • Sale
  • $1,571


Features:
• Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
• Uses the cars factory sensors
• Supports Sequential Injection (peak and hold) and Direct fire ignition
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping
• Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
• Diagnostic trouble code storing & Check engine light control
(Access through laptop only )
• Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
• Wideband “auto tuning” using user definable target AFR table
• USB and CAN Communication Port

Factory Outputs:
• 6 x Fuel Injector outputs
• 6 x Ignition outputs
• Tacho, Boost Control, AC Clutch Relay, Idle Control
• Thermo Fan, Check Engine Light, Fuel Pump (Variable Speed)

Factory Inputs:
• MAF sensors, Throttle Position Sensor, Oxygen sensors,
• Coolant Temperature sensor, Vehicle Speed Sensor,
• Air Temperature sensor

Expansion I/O*:
• 2 x Analogue Voltage inputs
• 2 x Analogue Temperature inputs
• 4 x Digital pulsed outputs
*Optional auxiliary harness required to be purchased Haltech Part # HT040003

Functions:
• Closed Loop O2 Control
• Decel Cut Over Boost Rev Limiter
• Closed & Open Loop Boost Control
• Gear Setup
• ACF On Base Tables
• Transient Throttle Enhance

Correction Tables: Fuel Ignition Boost:
• Cranking
• Air Temp Target Correction
• Zero Throttle Gear Correction
• Cylinder Trim
• TPS Correction
• Generic Correction 1
• Generic Correction 2
• Gear Correction
• Post Start
• Air Temp Duty Correction
• Post Start

Miscellaneous:
• Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds,
6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing

Power Requirements:
Source: 8.6 to 16.5 Volts DC
Consumption: 530mA @ 12Volts DC

Physical Dimensions:
ECU Dimensions Length: 154mm (174mm with MAP nipple)
Width: 158mm Height: 42mm Weight: 680g (1.5 lb)

Applications:
Nissan Skyline R34 GT-R

Engine Codes:
RB26DETT

Transmission:
Manual only (Automatic not supported)

The Kit includes: Pro Plug-in ECU, USB Cable, Programming Software CD, Quick Start Guide, Instruction Manual (on CD)
