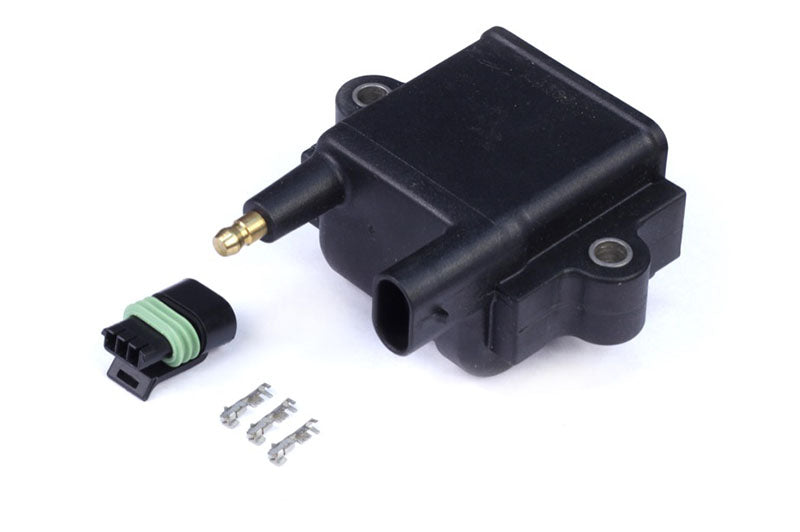

Mercury Marine IGN Dumb Coil

  • Sale
  • $72


The Mercury Marine IGN “Dumb” Inductive Coil is designed to be used with an external igniter. Works great in conjunction with the Haltech HPI ignition modules!

WHAT IT DOES

The IGN “Dumb” Inductive Coils each deliver up to 118mJ of spark energy and a minimum of 41,000 Volts—as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after its CDI burst to mimic longer spark duration. The full energy delivery and long duration of the High-Output Inductive Coils eliminate the need to compromise energy or duration with your ignition system, and will increase performance in high-boost or high compression engines.

WHY YOU WANT ONE


The High-Output “Dumb” Inductive Coils deliver CDI-like spark energy with the long duration of an inductive coil, and easily install in place of your exiting coils without the need to add a CDI. IGN coils are constructed to operate in harsh environments. They are shock and weatherproof, allowing them to be mounted virtually anywhere. They are affordable—less than the cost of aftermarket LS1 coils—and deliver World Class performance. “These coils are on 2,000-horsepower nitrous motors without a CDI, and they perform flawlessly.

RACER FEATURES

  • CDI-like spark energy without the need for a CDI
  • Less expensive than aftermarket LS1 coils
  • Robust construction allows them to be mounted almost anywhere
  • Available for vehicles with external igniters


TUNER FEATURES

  • Massive Spark Energy, up to 118 mJ!
  • Incredibly long spark duration, up to 3.2mS!
  • Up to 41kV Output Voltage, without a CDI!
  • Heavy-duty, weatherproof and shockproof design
  • Can be installed directly to engine


TECHNICAL SPECIFICATIONS
Primary Resistance: 0.5 Ω +/- 10%
Primary Inductance: 4.8 mH +/- 15%
Secondary Resistance: 8.5 kΩ +/- 20%
Secondary Inductance: 22.5 H +/- 20%
Output (50pF load): 41 kV +/- 10%
Output Energy: 118 mJ +/- 7%
Peak Secondary Current: 100 mA +/- 7%
Arc Duration: 3.2 mS +/- 10%
Turns Ratio 71:1
Maximum Battery Voltage: 17 Volts
Base Dwell: 3.0 mS
Max Continuous Dwell: 9 mS but don’t exceed 40% duty cycle
Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum

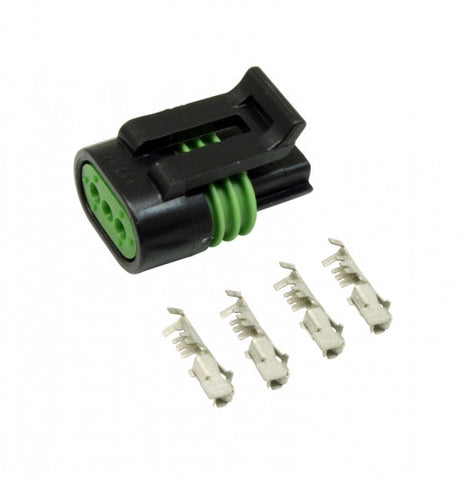

Mating Connector: Packard/Delphi 12162182 “Pull to Seat”
Mating Contacts: Packard/Delphi 12124075 “Pull to Seat”
High Tension Wire Terminal: HEI “spark plug top” Style

PINOUT
A: Battery Positive (Relay or switched ignition or high voltage input for CDI)
B: Coil Trigger (Charging when low)
C: Ground to Cylinder Head
